Introduction
Central production and operational information.
Welcome
Welcome and thank you for being part of the preparation for the Limp Bizkit event in Madrid, featuring special guests P.O.D. and Death by Romy.
On this website you will find detailed and updated production information to check schedules, access, technical specs, suppliers, hospitality, logistics, and plans in one place.
We have also gathered here the main requests and comments that have been worked on during the previous weeks of preparation, so that the entire team has a common and clear reference.
📍 How customers get to Movistar Arena — Madrid
The venue is located at Av. de Felipe II, s/n, 28009 Madrid, Spain.
- By Metro: Goya Station (Lines 2 and 4) or O'Donnell Station (Line 6).
- By Bus: Lines 15, 21, 26, 43, 53, 61, 63, C1, C2.
- By car: Located in the city center. Public transport is highly recommended due to high traffic.
- Parking: Public parking available nearby (e.g., Felipe II parking).
📍 Route from hotel to venue
📎 Route detail.pdf
Risers
Stage Risers & Rolling Decks
Requirements for band risers, drum risers, and additional stage platforms.
Riser Specifications
- Drum Riser: Rolling riser with specific dimensions and carpet requirements.
- Construction: Must be sturdy, leveled, and fitted with locking casters and skirting.
Audio
Audio Requirements
Detailed audio specifications and equipment provisioning based on P.O.D.'s rider.
Artist Carries (P.O.D.)
- FOH Console: Behringer WING compact
- MON Console: M32c / DL32 (MON Engineer: individual ipad)
- Mics: Artist carries all microphones
Locally Provided / Needed Equipment
| Item / Requirement | Details |
|---|---|
| FOH Setup | 6' Table for FOH |
| FOH Snake | Shielded Cat5 between Stage and FOH (300' max) |
| Wedges | 2 Downstage Left, per stageplot |
| SUB | 1 Drum Sub for drummer on ears |
| IEM Transmitters | 4 stereo IEM transmitters (Shure PSM or Senn G4) |
| Mic Stands | 3 Tall Booms, 1 Short Boom, 1 Straight Stand w/ Round Base |
| Cabling | 20x 20' XLR cables, 10x 10' XLR cables |
| Subsnakes | 1x 50', 8 channel |
| Power | 5x 120v drops for Backline Power |
Labour
Local Crew & Labour Call
Complete breakdown of local staffing and stagehands required for the load-in, show, and load-out phases.
Staffing Overview
- Load-in: Riggers, stagehands, forklift drivers, and electricians required for the setup phase.
- Show Call: Followspot operators, stage hands, and standby crew.
- Load-out: Full dismantling crew to ensure a swift teardown.
Crew Calls - 01/07/2026
| Quantity | Role | Department (Task) | Start | End |
|---|---|---|---|---|
| 2 | HAND B | SITE | 07:00 | 15:00 |
| 8 | HAND B | BACKLINE | 08:00 | 15:00 |
| 4 | HAND B | RISERS / DECKS | 08:00 | 15:00 |
| 10 | HAND B | PRODUCTION | 08:00 | 15:00 |
| 1 | FORKLIFTER | RISERS / DECKS | 08:00 | 15:00 |
| 1 | CREW HEAD | CREW CHIEF | 08:00 | 15:00 |
| 2 | HAND B | SITE | 15:00 | 22:00 |
| 10 | HAND B | PRODUCTION | 22:30 | 03:30 |
| 4 | HAND B | RISERS / DECKS | 22:30 | 03:30 |
| 8 | HAND B | BACKLINE | 22:30 | 03:30 |
| 1 | FORKLIFTER | RISERS / DECKS | 22:30 | 03:30 |
| 1 | CREW HEAD | CREW CHIEF | 22:30 | 03:30 |
Lighting
Lighting Design & Fixtures
Technical specifications for the lighting rig and visuals based on P.O.D.'s rider.
Visuals & Backdrop
- Backdrop / Video: The band has artwork for a digital drop (Video Wall), or they can carry a 24 x 24 backdrop (banner).
Equipment Provisioning (Needed Locally)
| Item / Requirement | Details |
|---|---|
| Lighting Rig | as per plot attached |
| LD (Lighting Designer) | Needed (Locally Provided) |
| LD Console | Needed (Locally Provided) |
Documents & Maps
Power
Power Distribution & Safety Regulations
Comprehensive electrical requirements, power drops, and local safety regulations for the Movistar Arena.
Electrical Needs
- Stage Power: Clean power requirements for audio, lighting, and video departments.
- Motor Power: Specific drops for rigging hoists.
- Shore Power: External power for tour buses and production trucks.
Certifications & Safety
Local regulations in Madrid require strict adherence to safety standards. The attached documents cover:
- Datos eléctricos WZC.pdf: Detailed electrical data and consumption estimates.
Rigging
Rigging Plot & Weight Loads
Structural limitations and hanging points for the Movistar Arena roof.
Rigging Details
- Points & Motors: Total number of hanging points, motor capacities, and exact positioning.
- Weight Limits: Maximum load capacities per beam and overall roof limits.
- Clearance: Trim heights required for the lighting trusses and PA hangs.
Point Loads Table
| Point | Load (kg) | Point | Load (kg) | Point | Load (kg) |
|---|---|---|---|---|---|
| 101 | 125.00 | 116 | 165.00 | 211 | 440.00 |
| 102 | 350.00 | 117 | 180.00 | 212 | 440.00 |
| 103 | 350.00 | 118 | 200.00 | 213 | 420.00 |
| 104 | 125.00 | 119 | 180.00 | 214 | 420.00 |
| 105 | 155.00 | 120 | 200.00 | 301 | 340.00 |
| 106 | 305.00 | 201 | 425.00 | 302 | 605.00 |
| 107 | 305.00 | 202 | 425.00 | 303 | 625.00 |
| 108 | 155.00 | 203 | 610.00 | 304 | 605.00 |
| 109 | 165.00 | 204 | 440.00 | 305 | 340.00 |
| 110 | 330.00 | 205 | 440.00 | 501 | 200.00 |
| 111 | 330.00 | 206 | 420.00 | 502 | 200.00 |
| 112 | 165.00 | 207 | 420.00 | 503 | 200.00 |
| 113 | 165.00 | 208 | 425.00 | 504 | 200.00 |
| 114 | 330.00 | 209 | 425.00 | ||
| 115 | 330.00 | 210 | 610.00 |
Stage
Stage Dimensions & Infrastructure
Details regarding the main stage build, barricades, and backstage infrastructure.
Stage Setup
- Dimensions: Total width, depth, and height of the performance area. The stage wings will be at the same height as the main stage (1.80m).
- Barricade: Will be provided locally and positioned 2m from downstage edge as per the attached plan.
- Access: Stairs, ramps, and tech bunkers positioning.
Video Broadcast
For this show, 2 side screens for live broadcast and 1 central screen (12x6m) will be installed.
The signal for the central screen can be received at FOH or on stage via HDMI.
Additionally, the live broadcast production will feature a 3-camera setup:
- 1 camera at FOH.
- 2 cameras in the pit in front of the stage.
Central Screen Equipment (12x6m)
LED Screens
- 2x NOVASTAR M3 MCTRL660 Video Controller
- 144x GLOSHINE ZS6.94 B1 LED Module 6.94 mm Outdoor (12x6m Screen)
Control & Media Server
- 1x BARCO FOLSOM IMAGE PRO II JR
- 1x APPLE MacBook Pro Z0V8 -16Gb / 4 core i7
- 1x RESOLUME ARENA 7 License
Power & Signal Infrastructure
- 1x LIGHTWARE DVI-OPT Tx/Rx 110 DVI Extender via Optical Fiber
- 1x Optical Fiber OM3 MM 100 meters
- 1x Power Box 63 A - 3 SCPX / 3 Shucko / 2 x 32 Amp Trif
- 1x Cabling & Accessories
Staffing (Screen)
- 1x AV Video Crew Chief
- 3x AV LED Screen Technicians
Broadcast Production Equipment
Audiovisual & Cameras
- 1x P2 HD 3-Camera Production Control
- 1x HD Video Mixer
- 3x PANASONIC AG-HPX500E HD Camcorder
- 3x Standard Camera Optics
- 3x Multicore Cable Cart (Signal + Power)
- 3x SWIT S-1071H+ Viewfinder
- 3x PANASONIC RCU AJ-RC10G CCU for HPX500
- 3x CANON FM-12 SD Focus Block
- 3x CAMGEAR V20 EFP GF Camera Tripod
- 1x ALTAIR EF-200 Station
- 3x BLACK MAGIC Mini Converter Optical Fiber 12G Tx/Rx HDSDI Extender
- 2x BLACKMAGIC SmartScope Duo 4K Dual 8" Monitor
- 3x ALTAIR 4W2-200 Intercom Beltpack
- 1x SAMSUNG S24D300H 24" LED Monitor
- 1x DELTA GES302R200035 UPS (SAI)
- 4x ALTAIR AM-100 Intercom Headsets
- 1x PANASONIC AW-HE40 HD-SDI PTZ Camera
- 1x PANASONIC AW-RP50E PTZ Remote Controller
- 1x CANON J33ax11B4 IAS SX12 Telephoto Lens
Early Entry
There will be a special action for the artist's closest fans consisting of an Early Access. This will give them the opportunity to enter the venue 15 minutes before General Admission (GA).
This group will be organized into a dedicated lane to give them priority entry and will be coordinated by the ticketing and security departments.
LIMP BIZKIT — Movistar Arena Schedule / Timeline
- Local production manager: Wero Edge wero@vansandroll.com
- Venue: Movistar Arena
Day 1: Wednesday (1/7/2026)
| Time | Action / Information | |
|---|---|---|
| 06:30 - 07:00 | Load in | Catering |
| 07:01 - 07:15 | Rigging - Markdown | Tars Rigging |
| 07:10 - 09:00 | Motors & Steel Rigging | Tars Rigging |
| 08:00 - 12:00 | Audio Set up | Clair Global Spain, S.L. |
| 08:01 - 13:00 | Lighting setup | Fluge Audiovisuales S.L. |
| 08:00 - 08:00 | Production get in | Limp Bizkit. |
| 08:05 - 13:00 | Backline & Risers set up | Call and Play Madrid |
| 08:06 - 13:00 | FOH Set up | Fluge Audiovisuales S.L. |
| 08:00 - 11:00 | Breakfast | Cuchara de Palo, S.L. |
| 09:00 - 12:00 | Video Setup | Fluge Audiovisuales S.L. |
| 12:00 - 12:00 | Party A arrives | Limp Bizkit. |
| 12:01 - 14:00 | Audio adjustements | Fluge Audiovisuales S.L. |
| 12:30 - 12:30 | Get in | P.O.D. |
| 12:00 - 15:30 | Lunch | Cuchara de Palo, S.L. |
| 13:30 - 16:00 | Backline set up Backstge | P.O.D. |
| 14:00 - 16:00 | Soundcheck | Limp Bizkit. |
| 14:15 - 14:30 | Get in | DeathbyRomy |
| 15:00 - 17:00 | Backstage setup backstage | DeathbyRomy |
| 16:15 - 17:00 | Soundcheck | P.O.D. |
| 17:15 - 17:45 | Soundcheck | DeathbyRomy |
| 17:45 - 18:00 | Doors Early Entry | Movistar Arena |
| 18:00 - 19:00 | Doors GA | Movistar Arena |
| 17:00 - 20:30 | Dinner | Cuchara de Palo, S.L. |
| 19:01 - 19:30 | Showtime | DeathbyRomy |
| 19:45 - 20:45 | Showtime | P.O.D. |
| 21:15 - 23:00 | Showtime | Limp Bizkit. |
| 23:00 - 23:00 | Sound curfew | Movistar Arena |
| 00:30 - 01:00 | OUT Motors & Steel Rigging | Tars Rigging |
Contacts
| Name | Role | |
|---|---|---|
| Wero | Prod Manager | wero@vansandroll.com |
| Alex Nooirax | Stage Manager | info@nooirax.com |
| Alberto Lluberas | Security Manager | Alberto.Lluberas@themusicrepublic.es |
| Xavi Payan | Hospitality | produccion@xavipayan.com |
P.O.D.
- Event: Limp Bizkit @ Movistar Arena
- Date: 01/07/2026
CONTACT DETAILS
| Nombre / Campo | Información |
|---|---|
| Contact Name | Dan Hallas |
| Contact Email | Danhallas@comcast.net |
| Contact Phone | (+1)6175106353 |
| Management | - |
TIME PLANNING
| Date | Start | End | Stage | Description |
|---|---|---|---|---|
| 01/07/2026 | 12:30 | 12:30 | Movistar Arena | Get in |
| 01/07/2026 | 13:30 | 16:00 | Movistar Arena | Backline set up Backstge |
| 01/07/2026 | 16:15 | 17:00 | Movistar Arena | Soundcheck |
| 01/07/2026 | 19:45 | 20:45 | Movistar Arena | Showtime |
Parking & Access

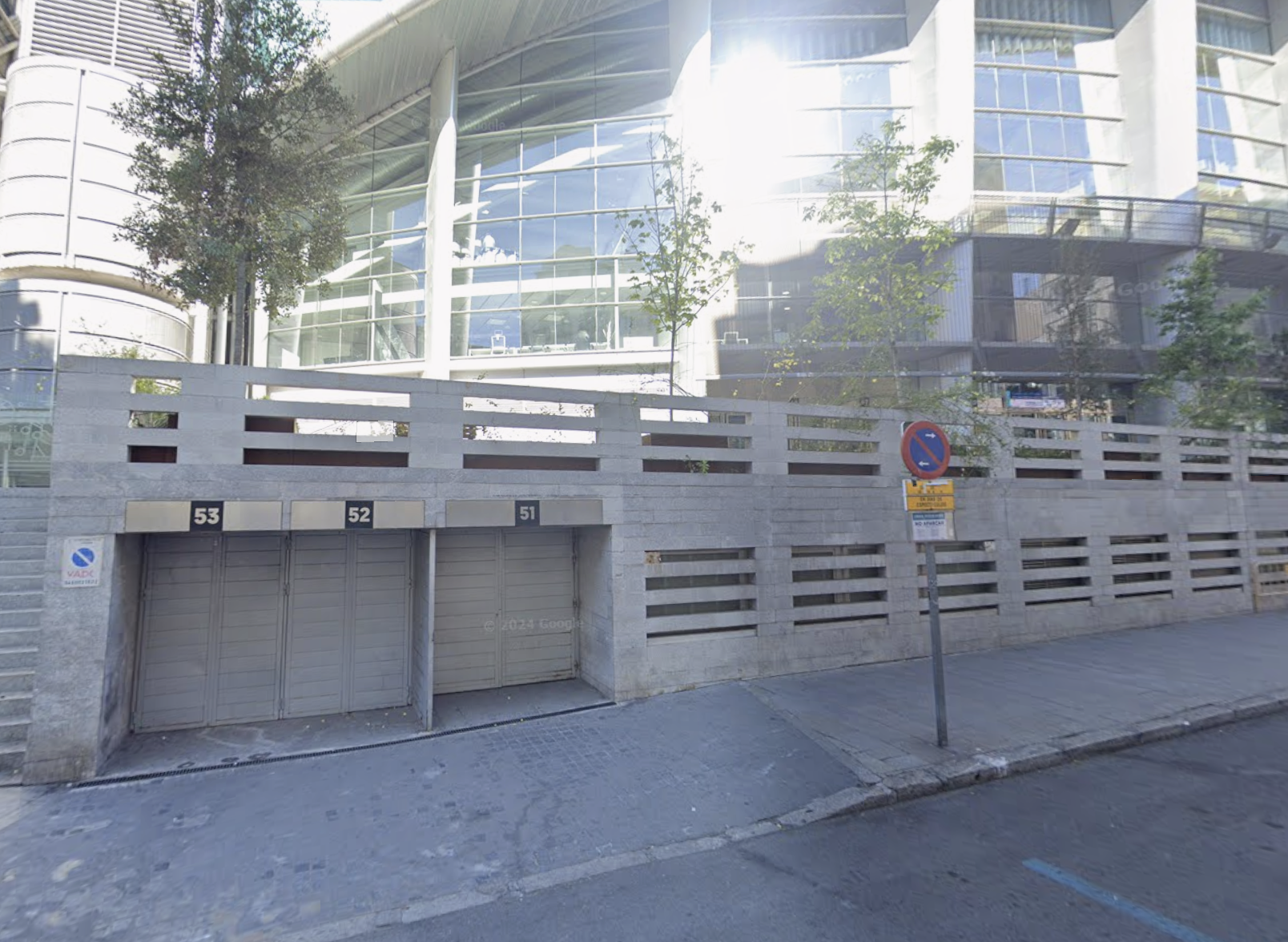

A parking space has been reserved on Fuente del Berro street, right in front of Door 51. This door will be used as the artist entrance and will be active starting at 6:30 AM.
The tour must provide the license plates of the vehicles bringing the artist's equipment in advance to ensure access.
Maps & References
Hospitality & Dressing Rooms
Contact: Xavi Payan - produccion@xavipayan.com
Summary of catering, dressing room allocations, and rider adjustments based on recent communications.
Dressing Rooms & Facilities
- Location: Level -1 (Stage is at Level -2).
- Support Acts: 4 locker rooms available for P.O.D. and Death By Romy & crew
Documents & Maps
Ground Transportation & Logistics
Overview of the transportation needs for the Band and Crew.
Pick-ups & Transfers
| Date | Movement | Pax / Group | Vehicle | Flight / Notes |
|---|---|---|---|---|
| 28/06/2026 | Airport to Hotel | P.O.D. (9pax) | 1x Sprinter Van | AY 1661 (Arr. 20:05) 25 bags |
| 01/07/2026 | Hotel to Venue | P.O.D. (4pax) | 1x Sprinter Van | 12:00 PM (12 bags) |
| 01/07/2026 | Hotel to Venue | P.O.D. (4pax) | 1x Sprinter Van | 14:00 PM |
| 01/07/2026 | Venue to Hotel | P.O.D. (9pax) | 1x Sprinter Van | 23:00 PM (15 bags) |
| 02/07/2026 | Hotel to Airport | P.O.D. (9pax) | 1x Sprinter Van | 13:00 PM (IB 785) 25 bags |
Notes:
- Hotel: Hotel Vincci Soho
- Vendor: Artist Crew - Rafa - contacto.artistcrew@gmail.com
- Driver contacts will be sent via email once final times are clear.
Accommodation
HOTEL: Hotel Vincci Soho
ADDRESS: C. del Prado, 18
CITY: Madrid STATE: Madrid ZIP: 28014
PHONE: +34 911 41 41 00
GUEST FAX NUMBER: -
TO DIAL ROOM TO ROOM: TBD (Check with front desk)
TO DIAL A LOCAL CALL: TBD (Check with front desk)
INTERNET LOGIN/PASSWORD: Free Wi-Fi
ROOM SERVICE HOURS: TBD
HOTEL RESTAURANT HOURS: Nomad restaurant & bar. Breakfast: 7:00 AM – 10:30 AM (Weekdays), 7:00 AM – 11:00 AM (Weekends).
HEALTH CLUB ON PROPERTY: No
FACILITIES & EQUIPMENT OFFERED: 24-hour reception, outdoor dining patio, laundry/dry cleaning, luggage storage, parking (extra charge)
POOL (INDOOR/OUTDOOR/HEATED)(PLEASE SPECIFY): No pool
TAXI COMPANY: Free Now / Tele Taxi PHONE: +34 913 71 21 31
LOCAL ATTRACTIONS: Museo del Prado, Retiro Park, Royal Palace
